We manufacture Jewelry Casting machine for Gold & Silver Casting in various form shapes like Rod, Strip, Tube & Section for all type of Jewelry alloys such as 10 carat, 12 Carat, 14 Carat, 16 Carat, 18 Carat, 22 Carat & pure Gold 24 Carat.

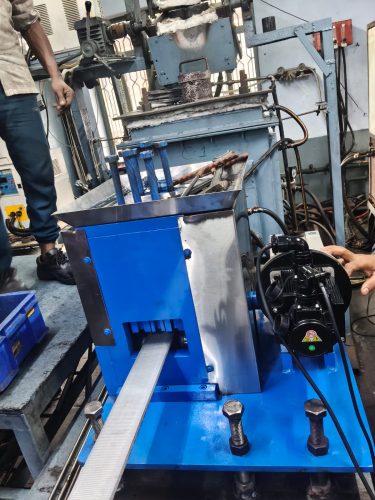

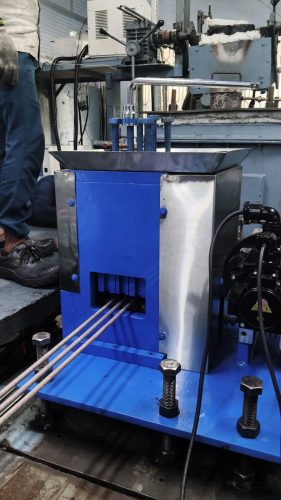

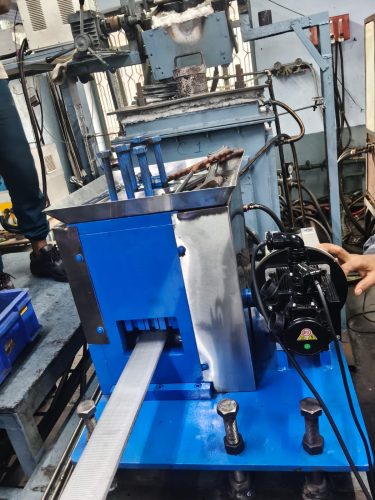

Silver Alloys such as Sterling Silver 92.5% & Balance Copper, 80:20 Silver and some brazing alloy for silver & Gold Brazing alloy is casted through horizontal continuous casting machinery. The high quality of output material depends on high density Graphite crucibles & Graphite die cast to the last drop of material, thus resulting in NO WASTE, and LOSS of Material and full recovery of material output.
Machine Range/ Model | Power Rating (KVA) | Cruc. Capacity | Rod Dia. (Min-Max.) | Section width max. | Max. No. of Dies | Max. No. of Strands | Casting Capacity Kg./Hr. | Max. Temp. | Typical Application |
VHC-5 | 10 | 5 | 6-50 | 35 | 1 | 2 | 7 | 1400 | Rods, Strips |
VHC-10 | 15 | 7 | 6-50 | 35 | 1 | 2 | 10 | 1400 | Hollow Rods & Strips |
JEWELRY CASTING MACHINE
